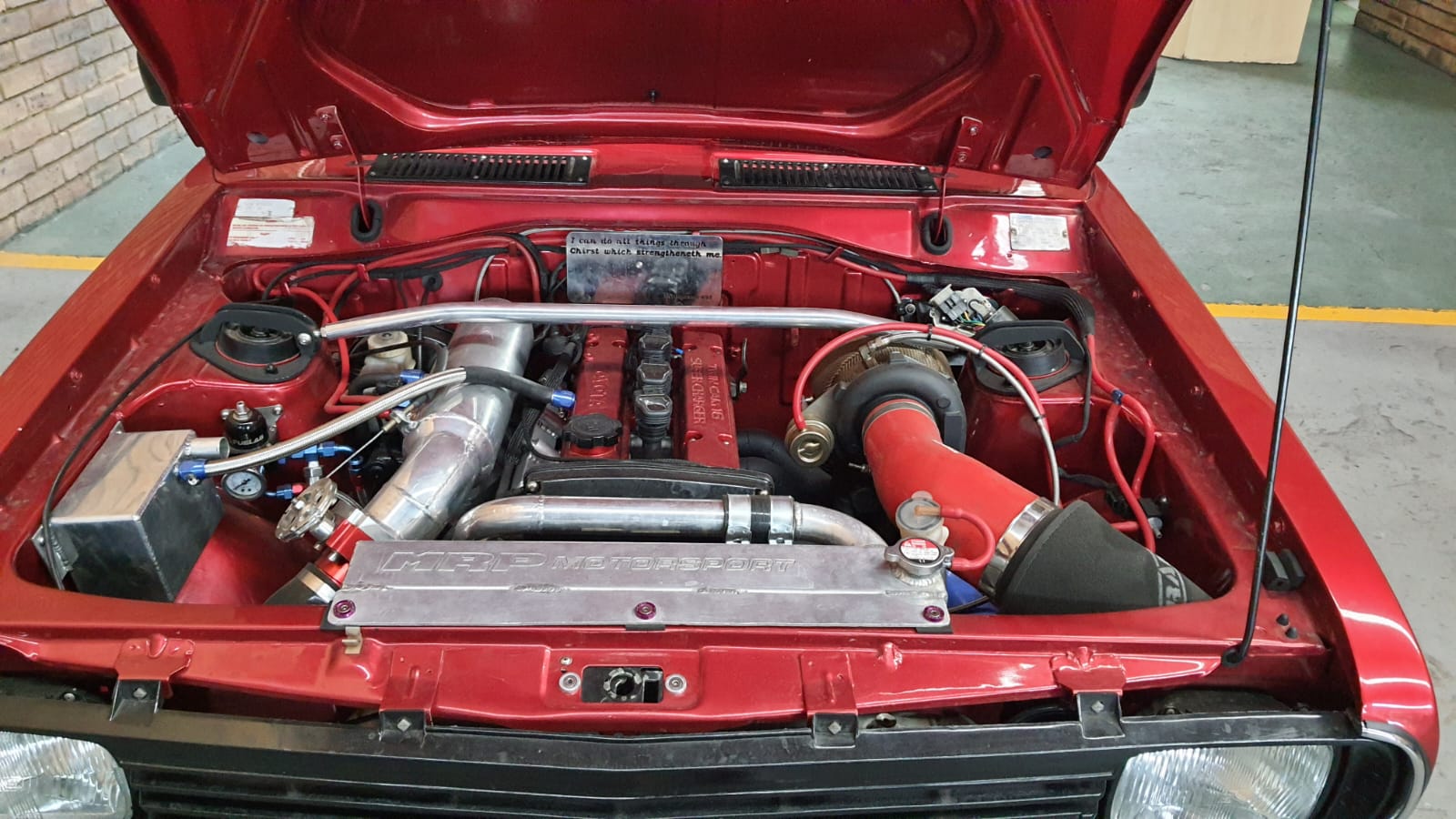

Engine:
● Built for 2 bar boost. ● Twin cam Supercharge engine
● Small port Head configuration ● Head, valves, guides, valves seals are all
re-done. ● CP Forged Pistons Toyota 4AG 81.5mm ● Conrods max speed rods with
ARP2000 studs ● ARP head bolts ● ARP main bolt ● ARP big end bolts ● Cometic
head gasket ● Main bearings ACL ● Big end bearings ACL ● Oil pump upgrade ACL ●
Only done 17km startup on new build running in ● Bosch alternator 70amp ● No
distributor running 30-2crank pickup ● Audi R8 coil ● Engine Oil still mono grade for running in ● Before
engine forged done 193kw/300nm/0.9bar boost/ pump fuel ● Gates cambelt blue
type ● Vernier cam pulley's ● No Silicone used on engine build all gaskets are
cut out for applications
Fuel System:

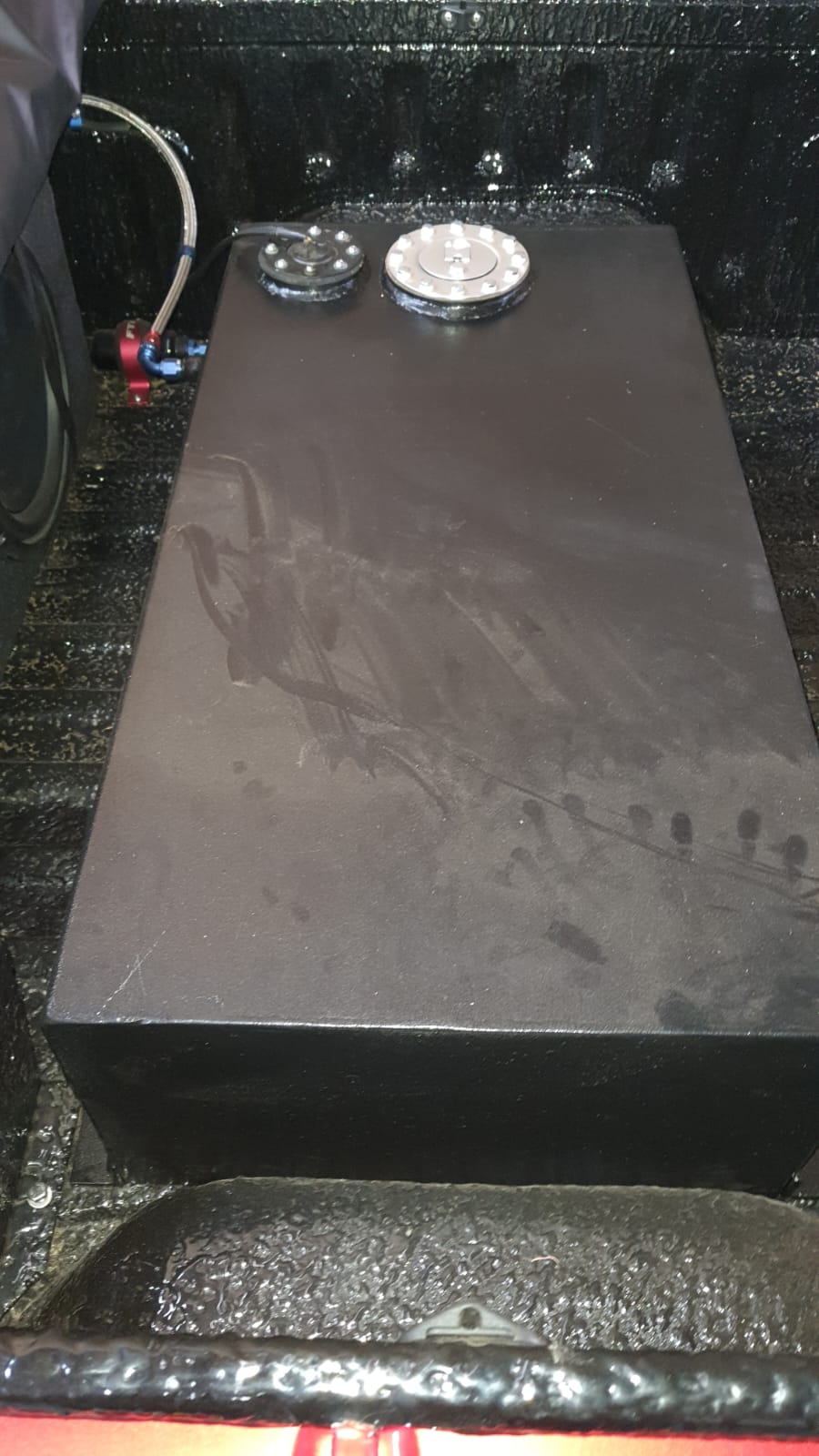

● Fuel pump Bosch 0404 6 bar. ● Injectors bosch 980cc● Fuel piping FTF ● FTF fuel filter ● Fuel cell 70 liters on rear axle ● FTF fuel pressure regulator
Brake System:
● FNew brake booster. ● New master cylinder ● Brake lines FTF
Gearbox:
● Toyota R21 gearbox. ● 50/50 ration gearbox oil and ATF.
Electrical:
● All motor wiring separater. ● All automotive sleeving done on wiring ● Duel battery system new cable 35# to engine components ● Separate relay and fuse system for engine components.
Suspension:

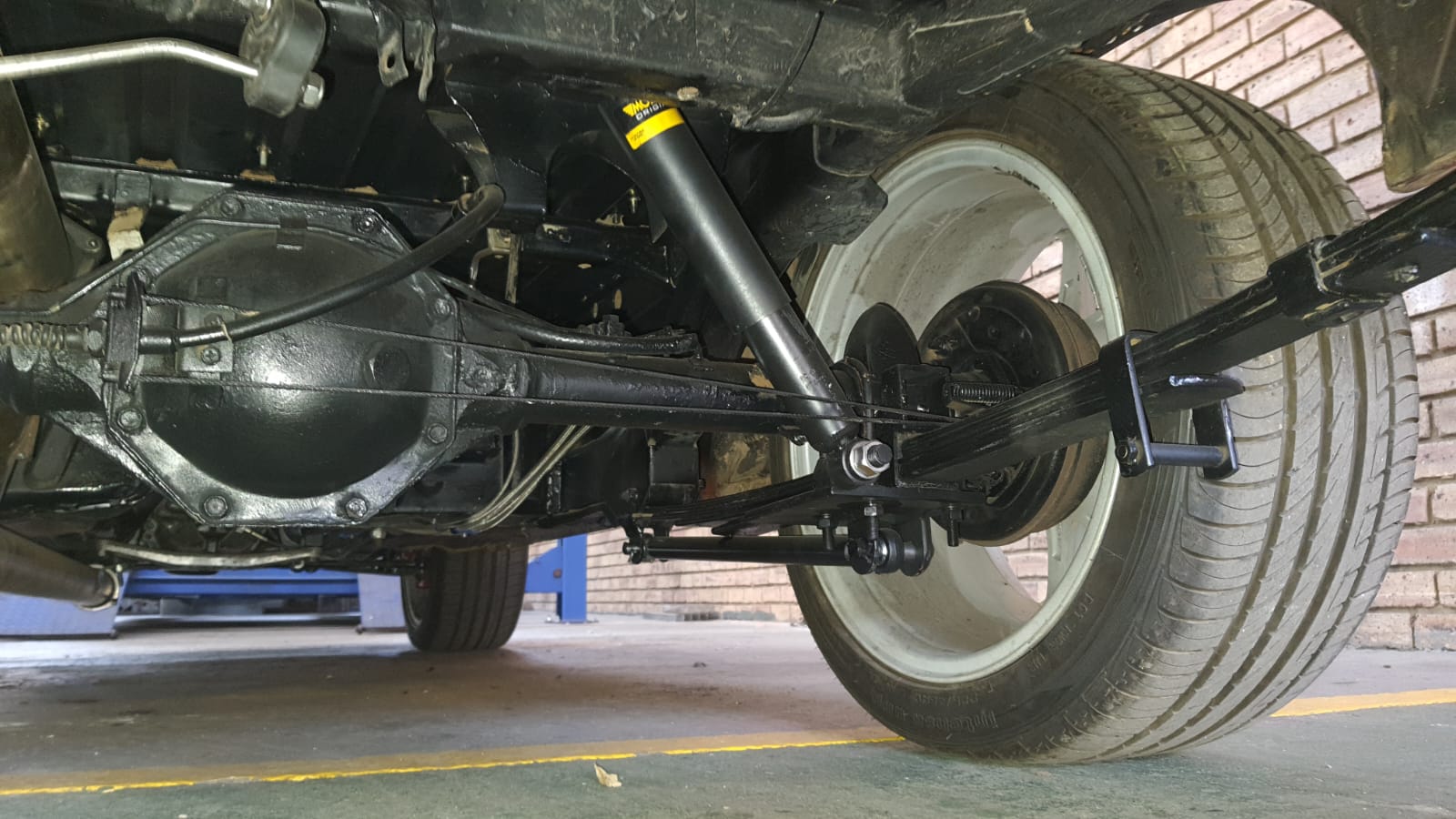

● New shocks at rear ACL. ● Rear diff support removed, installed 6mm diff supports ● Strut brace link suspension built for antiroll on diff ● Rose joint links to rear ACL build for drag and antiroll rear suspension. ● 30mm link arms to cabin supports fitted to leave springs ● Strut brace for front shocks support.
Diff:
● Diff modification with Cressida internals.
ECU:
● EFI Analytics software platform● Oil protection.● Fuel protection ● Engine rpm protection ● Auto tune capability.● Run in tune currently loaded for 1000km. ● Live AFR Aim Lambda with gauge display ● Boost tune to be loaded after engine run in ● ECU capable running flex fuel close loop for fuel mix E85 or E50 high boost ● Engine protection for oil and fuel and cold conditions RPM limiter activated ● No acceleration is possible before engine is constantly above 40 degrees for new engine.

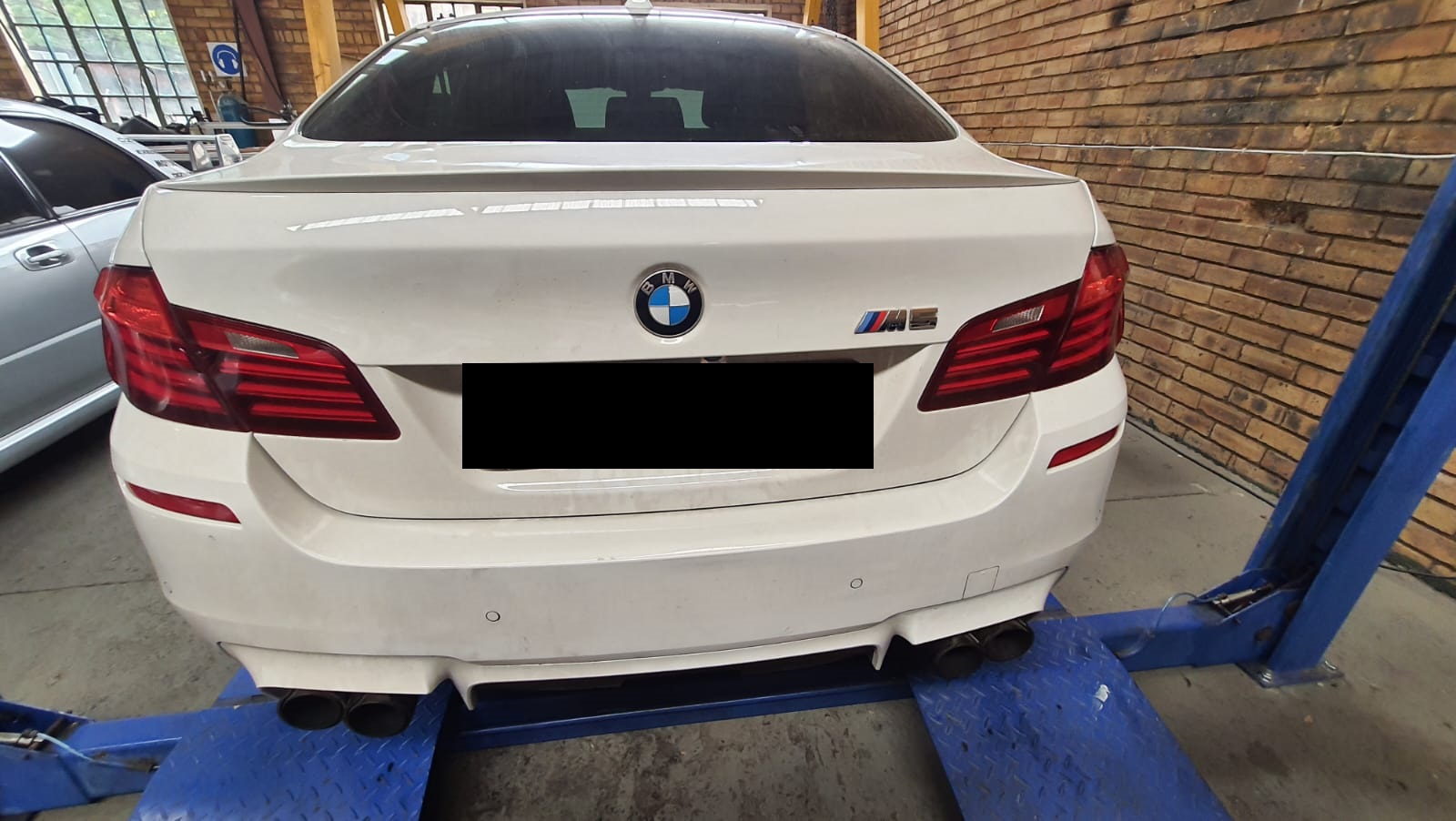

BMW M5
CustomSoftware Stage 2
Tuning:
VZ Tuning (Pty)Ltd is the result of many years of research, development and experience in automobile technology and car tuning. We offer only the very best in custom Electronic Control Unit (ECU) repairs, remapping, car tuning, and vehicle engine tuning using the latest Electronic Control Unit (ECU) programming techniques. Our core technical skills are combined with a passion for outstanding performance car tuning and customer service in everything we provide to thousands of motorists and businesses worldwide. Many of our tools are developed in house to stay ahead in our industry and supply our customers with the most advanced tuning and Electronic Control Unit (ECU) Repairs.
